Testor / Hawk 1/48 scale
F2H-1 Banshee

by Tony Prince





Description

Here are several pictures of my recent build of the old Hawk Banshee. This is still the only game in town if you want one in this scale, unless you can afford to go for Collect Aire's version.

This sleek & graceful aircraft has been one of my favourites ever since I first saw photos of it in Aviation Week as a schoolboy. I am obviously not alone in this as I note from several sources that this model is on a great many wish lists & that there have been a few souls like me who have had a go at updating Testor's kit. Its just about time for Murphy's law to strike, surely?

I won't go into the shortcomings of the old Testor kit, however the good news is that the shape is okay for a -1.





The following modifications were made to mine over a period of some sixty hours (mostly fun).
bullet

Sand off all surfaces & rescribe.

bullet

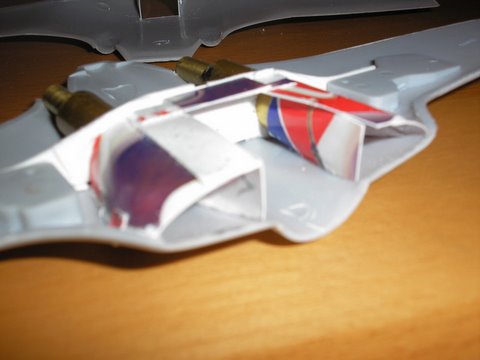

Install wing spar with cut outs to locate engines.

bullet

Full air intakes & boundary layer bleed.

bullet

Engine compressor faces & tailpipes.



bullet

Scratch built cockpit.

bullet

Resin ejector seat.

bullet

Drilled out gun ports.

bullet

Scratch built nose wheel bay.

bullet

New main undercarriage, resin wheels, scratch built undercarriage retraction details all round.

bullet

New undercarriage doors all round.

bullet

Main cockpit canopy (from a Hasegawa Mustang) suitably altered.

bullet

Dropped elevators.

Finally, although the kit is a little on the short side for the F2H-2 version, I shortened the tip tanks, Made navigation lights & relocated the wing attachment points & made them removable, so for the purist, the model is in the markings of a F2H-1, but can be posed as a -2 if the mood takes me.

The original aircraft may be found on page 14 of Squadron/Signal 'Banshee in Action' & is 204 of VF-171 based at NAS Cecil Field, Florida, probably in late 1949 or early 1950?

Thanks to them for all the reference material & to my spares box for bits & decals (without which this model would not have been possible).

Click the thumbnails below to view larger images:
